Using the Cisco Time Series Model 1.0 on DSDL 5.2.3

Parameters

• value_field (Required): Specifies the field name of the time series from your upstream search results.
• hf_repo (Optional): The Hugging Face repository from which the model is downloaded. If not specified, it defaults to cisco-ai/cisco-time-series-model-1.0.

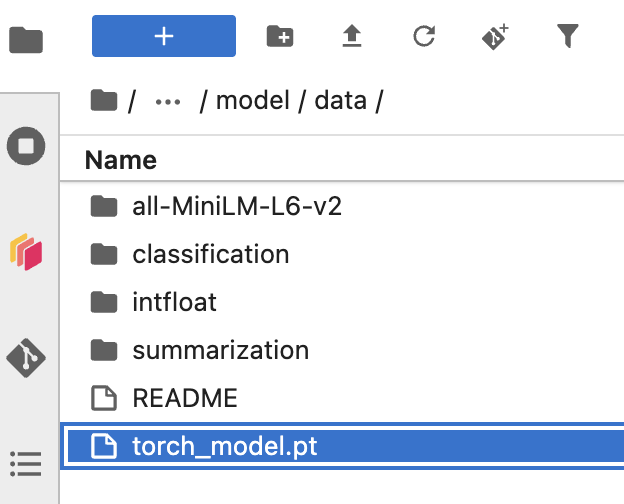

• local_path (Optional): The local path where the model file is stored. If you have manually downloaded torch_model.pt and placed it in your JupyterLab directory, use the path: /srv/app/model/data/torch_model.pt.
• forecast_steps (Optional): Specifies the forecasting horizon (maximum value is 128).

The command returns a list of fields prefixed with predicted_. These represent the percentiles of the forecasted values, including: mean, P1, P5, P10, P20, P25, P30, P40, P50, P60, P70, P75, P80, P90, P95, and P99.

The output series matches the exact length of the input time series. If your time series data extends to the current timestamp, the CTSM model will "hold back" the last forecast_steps data points and use the preceding data to predict those values.

To forecast future states beyond your current data, you must pad your time series with future timestamps before sending it to the CTSM for inference, as shown in the following SPL example.

| inputlookup internet_traffic.csv | head 10000 | timechart span=5min avg("bits_transferred") as bits_transferred | eval bits_transferred = bits_transferred / 8 / 1024 / 1024 | sort _time



```

Adding data point padding to continue the timeseries for forecasting

```

| append [| makeresults count=128 | eval bits_transferred=0, _time = 0 | streamstats count as pad ]

| eventstats latest(_time) as latest_timestamp

| eval _time=if(pad>0, latest_timestamp + pad*300, _time)

| table _time bits_transferred



```

Forecasting the padded time series

```

| fit MLTKContainer algo=ctsm_forecast value_field="bits_transferred" forecast_steps=128 * into app:ctsm_forecast

In this SPL, we first pad the input time series (for example, bits_transferred) with 128 future steps, using incremental timestamps and setting the series value to 0. After the data is prepared, we use the fit command to run the inference. The model returns a table that contains the forecasted values.

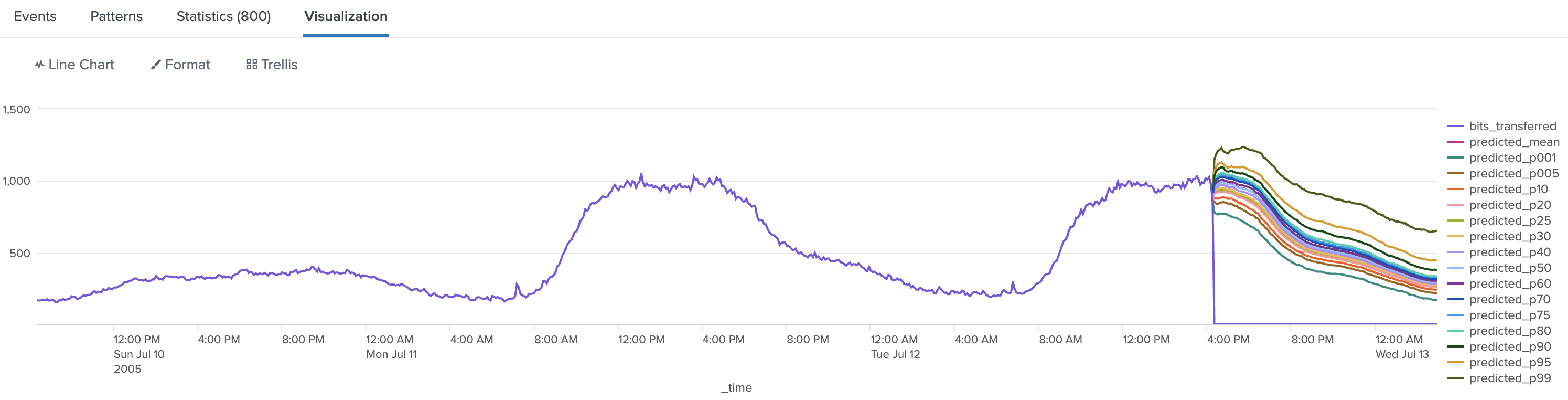

When plotted on a line chart, these quantiles effectively visualize the model’s confidence intervals for future forecasts.

Parameters

• batch_size: Determines the number of time series processed simultaneously.
• forecast_steps: Specifies the forecasting horizon (maximum value is 128).
• hf_repo / local_path: These function the same as in the single-series inference command, allowing you to specify the model source or a local file path.

Unlike the standard inference command, this method does not require a specific value_field input. The command treats all input fields (excluding _time) from the upstream search results as individual time series and processes them in batches defined by the batch_size parameter.

To simplify the output, only the mean forecast of each time series will be returned. The following SPL showcases how this batched inference works.

| inputlookup internet_traffic.csv | timechart span=5min avg("bits_transferred") as bits_transferred

| eval bits_transferred = bits_transferred / 1024 / 1024

| eval field_1=bits_transferred, field_2=bits_transferred, field_3=bits_transferred, field_4=bits_transferred, field_5=bits_transferred, field_6=bits_transferred, field_7=bits_transferred, field_8=bits_transferred, field_9=bits_transferred, field_10=bits_transferred

| fit MLTKContainer algo=ctsm_forecast_batched batch_size=32 forecast_steps=128 * into app:ctsm_forecast_batched

For each input time series (for example, field_1, field_10), the mean forecasts are returned in fields prefixed with predicted_ (for example, predicted_field_1, predicted_field_10).

As with the single-series inference, the batched command performs predictions based on the last 128 steps of your input data. If you wish to forecast future states, you must pad each time series with future timestamps and placeholder values before running the inference, following the same methodology outlined in the previous SPL example.
