Setting up a Microsoft 365 abuse mailbox asset in Enterprise Security

Prerequisites

• Splunk Enterprise Security Premier Cloud version 8.5 or later.
• The Automated Threat Analysis module activated in Splunk Enterprise Security Premier. Contact your account team if you are unsure whether Automated Threat Analysis is activated in your environment.
• Permission to install Splunk SOAR apps and configure assets from Splunk Enterprise Security.
• SOAR webhooks activated. The webhook port (3500/tcp by default) must be reachable by Microsoft during the OAuth or admin-consent callback.
• Existing Microsoft 365 mailbox for reported abuse or phishing messages, and known mailbox address and folder to poll.
• One of the following Microsoft Entra roles: Privileged Role Administrator or Global Administrator. This asset requires Microsoft Graph application permissions (see Step 4), and only these roles can grant consent for that permission type. Application Administrator and Cloud Application Administrator can create the app registration but cannot grant this consent.
• A decision on your authentication method: OAuth client secret, Certificate Based Authentication (CBA), or Automatic.

Configuration overview

1. Install the Microsoft 365 app in Splunk SOAR
2. Create the Microsoft Entra app registration
3. Configure authentication credentials in Microsoft Entra
4. Add Microsoft Graph API permissions in Microsoft Entra
5. Configure the Microsoft 365 asset in Enterprise Security
6. Configure ingestion settings in Enterprise Security
7. Activate the webhook service in Splunk SOAR
8. Enable webhooks for the asset in Enterprise Security
9. Add the SOAR Route URL to Microsoft Entra
10. Run Test Connectivity and complete Microsoft consent in Enterprise Security
11. Verify polling and finding creation in Enterprise Security

Step 1: Install the Microsoft 365 app in Splunk SOAR

► Click to expand

1. Log in to Splunk Enterprise Security and navigate to Configure > Splunk SOAR > Apps.
2. Search for the Microsoft 365 app.
   • If the app appears, proceed to Step 2.
   • If the app does not appear, installation must be completed in Splunk SOAR. Continue with the steps below.
3. In Splunk SOAR, navigate to Home > Apps.
4. Search for Microsoft 365 in the Configured Apps and Unconfigured Apps tabs.



5. If there are no results under either tab, click New Apps.



6. Search for Microsoft 365 and click Install.

After installation is complete, the Microsoft 365 asset configuration takes place within Splunk Enterprise Security.

Step 2: Create the Microsoft Entra app registration

► Click to expand

1. Open the Microsoft Entra admin center and confirm that you are in the correct tenant.
2. Navigate to Identity > Applications > App registrations and click New registration.
3. Enter a descriptive name, such as Splunk_ES_M365_Abuse_Mailbox.
4. Select the appropriate Supported account type for your organization.
5. Leave Redirect URI blank for now. You will add the SOAR Route URL after the asset is saved in Step 8.
6. Click Register.

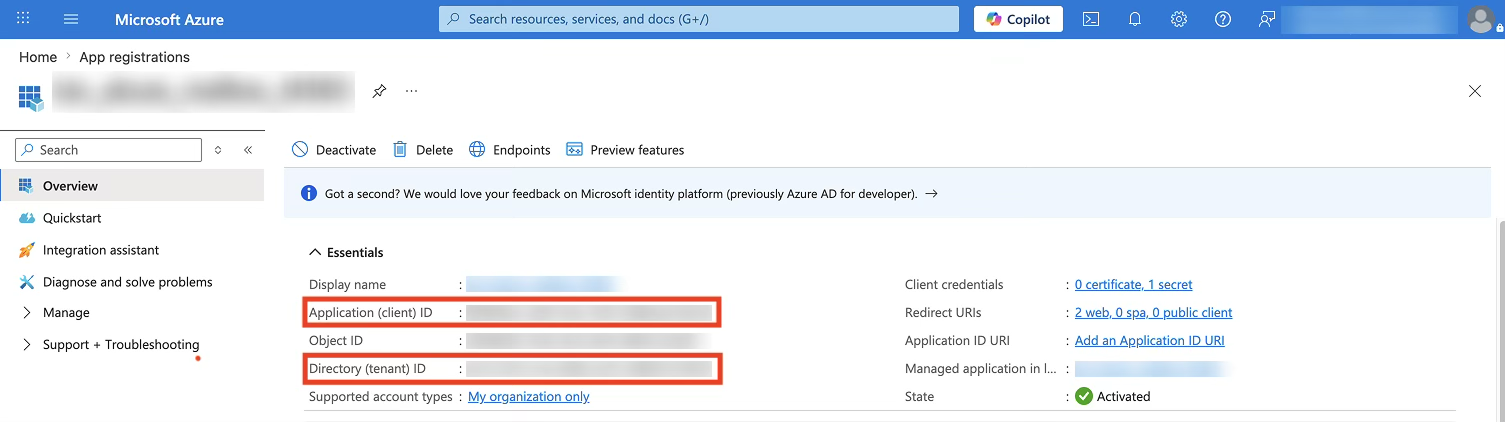

7. After the registration is saved, the app Overview page appears. Copy and store both of the following values; you will need them in Step 5:
   • Application (client) ID
   • Directory (tenant) ID



Continue with Step 3 in this tab.

Step 3: Configure authentication credentials in Microsoft Entra

► Click to expand

OAuth client secret and Certificate Based Authentication (CBA) are both supported. Follow Option A or Option B depending on your chosen authentication method.

Option A: OAuth client secret

1. In the app registration, expand Manage > Certificates & secrets.
2. Under Client secrets, click New client secret.
3. Enter a description and set an expiration period that matches your organization's security policy.
4. Click Add.



5. Copy the secret Value immediately and store it securely. Microsoft will not show this value again after you leave the page.



Option B: Certificate-based authentication

1. Generate or obtain a certificate and matching private key in PEM format, following your organization's certificate standards.
2. In the app registration, navigate to Certificates & secrets > Certificates and upload the certificate.



3. Copy the certificate Thumbprint and store it for use in Step 5.

When using CBA, you must select Admin Consent Already Provided in the Splunk Enterprise Security asset configuration after Microsoft Graph permissions have been granted in Step 4.

Continue with Step 4 in this tab.

Step 4: Add Microsoft Graph API permissions in Microsoft Entra

► Click to expand

The permissions you need depend on how you intend to use the asset. Use the table below to identify the least-privilege set for your use case.

Use case	Recommended Microsoft Graph application permissions
Read and poll abuse mailbox messages	User.Read.All Mail.Read
Move, copy, delete, or update messages after analysis	User.Read.All Mail.ReadWrite
Send messages from Microsoft 365 actions	User.Read.All Mail.Send Mail.ReadWrite
Mailbox rules or out-of-office actions	MailboxSettings.Read MailboxSettings.ReadWrite

1. In the app registration, select API permissions.
2. Click Add a permission > Microsoft Graph.



3. Select Application permissions and add the permissions for your use case.



4. Click Grant admin consent for your organization and confirm the prompt.



Open a new browser tab to continue with Step 5.

Step 5: Configure the Microsoft 365 asset in Enterprise Security

► Click to expand

1. In Splunk Enterprise Security, navigate to Enterprise Security > Mission Control.
2. Select Configure > Splunk SOAR from the top menu bar.



3. Select Apps.
4. Search for Microsoft 365 and click View to access the asset configuration page.



5. Click Configure New Asset.



6. On Asset Settings, enter the values from the Microsoft Entra app registration and select your authentication method.

   Field	Value
   Asset Name	A descriptive name, such as m365_abuse_mailbox
   Tenant	Directory (tenant) ID from the Entra app Overview page
   Application ID	Application (client) ID from the Entra app Overview page
   Authentication Type	OAuth for client secret, Certificate Based Authentication for CBA, or Automatic when both credential types are configured
   Application Secret	Client secret Value from Microsoft Entra. Required for OAuth. Do not use the Secret ID.
   Certificate Thumbprint	Thumbprint from Microsoft Entra. Required for CBA.
   Certificate Private Key (.PEM)	Private key matching the uploaded certificate. Required for CBA.
   Admin Access Required	Keep selected for standard automated email ingestion.
   Admin Consent Already Provided	Leave unselected for the first OAuth Test Connectivity run. Select it after consent succeeds, or when using CBA after consent has already been granted.
   Access Scope	Required only when Admin Access Required is unselected. Enter space-separated Graph scopes.
   Retry Count / Retry Wait Time	Use defaults unless your network or throttling requirements specify otherwise.



7. Stop when you reach Ingest Settings and open a new browser tab to continue with Step 6.

Step 6: Configure ingestion settings in Enterprise Security

► Click to expand

1. Click Next to move to Ingest Settings.
2. Use the following table to configure ingestion and finding settings.

   Field	Value
   Email Address of the User	The mailbox address to monitor, for example abuse@example.com
   Mailbox Folder	Folder name, path, or Office 365 folder ID. Use / for nested paths, for example Inbox/Phishing.
   Retrieve Folder ID Automatically	Keep selected when providing a folder name or path. Clear it only when providing an internal Office 365 folder ID.
   How to Ingest	latest first for most new deployments; oldest first when intentionally backfilling older messages
   Maximum Containers for First Scheduled Polling	Default is 1000. Lower this if the mailbox already contains a large backlog.
   Maximum Containers for Scheduled Polling	Default is 50. Adjust based on expected report volume.
   Run Threat Analysis	Confirm that this is selected. When selected, polled messages are sent to ATA for sandboxing and analysis.
   Launch automation after threat analysis is complete	Confirm that this is selected. When selected, associated Splunk SOAR automation playbooks run after ATA analysis is complete.



Step 7: Activate the webhook service in Splunk SOAR

► Click to expand

1. In Splunk SOAR, select Administration from the dropdown home menu.
2. Navigate to Administrative Settings > Webhook Settings and confirm that webhooks are activated.



Step 8: Enable webhooks for the asset in Enterprise Security

► Click to expand

1. Back in Microsoft 365 asset configuration in Splunk Enterprise Security, click Next to advance to Webhook Settings.
2. Select Enable webhooks for this asset.
3. Leave Webhooks require SOAR authentication unselected for the Microsoft OAuth callback flow.
4. Leave Pass these headers to the webhook handler empty.
5. Click Save.
6. Copy the generated Route URL. It must end with /result.

   Field	Value
   Enable webhooks for this asset	Selected
   Webhooks require SOAR authentication	Unselected
   Pass these headers to the webhook handler	Leave empty
   Route URL	Copy the complete URL ending in /result



Step 9: Add the SOAR Route URL to Microsoft Entra

► Click to expand

1. Return to the Microsoft Entra app registration you created in Step 2.
2. In the menu on the left, select Authentication (Preview).
3. Click Add a platform > Web.



4. Paste the SOAR Route URL from Step 8 as the Redirect URI.



5. Click Save.

Step 10: Run Test Connectivity and complete Microsoft consent in Enterprise Security

► Click to expand

1. Return to the Microsoft 365 asset in Splunk Enterprise Security.
2. Confirm that Admin Consent Already Provided is unselected for the first OAuth run.
3. Click Test Connectivity.



4. When the test displays the Microsoft authorization URL, open it in a new browser tab while the test is still running.
5. Sign in with a Microsoft Entra administrator account that can grant consent.
6. Review the requested permissions and click Accept.
7. After the browser displays Admin consent received or Authorization successful, return to Splunk Enterprise Security and confirm Test Connectivity Passed.
8. Edit the asset and select Admin Consent Already Provided. Save and run Test Connectivity again to confirm that it still passes.

Step 11: Verify polling and finding creation in Enterprise Security

► Click to expand

1. Send a safe test message to the configured abuse mailbox folder.
2. Click Poll Now or wait for the configured polling schedule.



3. Confirm that the Microsoft 365 asset creates a finding for the test message.
4. Open Splunk Mission Control and verify that the finding includes the expected message details and ATA output.

The asset configuration is now complete. The specified abuse mailbox is polled based on the interval or schedule you defined.

Troubleshooting

• If Test Connectivity reports an invalid tenant, confirm that the Tenant field contains the Directory (tenant) ID from the same Entra app registration.
• If Test Connectivity reports an invalid client or application, confirm that Application ID contains the Application (client) ID, not the Object ID.
• If OAuth fails with a secret error, confirm that the asset uses the client secret Value and not the Secret ID. If the value was lost, create a new client secret.
• If Microsoft rejects the redirect, confirm that the Entra Web redirect URI exactly matches the SOAR Route URL, including host, port, path, asset identifier, and trailing /result.
• If admin consent times out, run Test Connectivity again and complete the Microsoft consent page while the test is still waiting.
• If permission errors appear, verify that Microsoft Graph application permissions were added and admin consent was granted for the tenant.
• If CBA fails, confirm that Certificate Thumbprint and Certificate Private Key (.PEM) match the uploaded certificate and Admin Consent Already Provided is selected.
• If polling succeeds but no emails are ingested, verify Email Address of the User, Mailbox Folder, Retrieve Folder ID Automatically, and the first-run polling limits.
• If folder lookup fails, verify that the folder name is correct (it is case-sensitive), nested paths use /, and the asset is not treating a folder ID as a folder name.
• If the webhook callback never reaches Splunk SOAR, confirm that the SOAR base URL and webhook port are reachable. For FedRAMP or on-premises deployments, confirm the required network path before retrying.
