Applying useful SOAR playbook design features

Drop None

The Drop None toggle is an advanced configuration in a format block. When SOAR processes fields and artifacts, particularly when handing arrays, a null field value will be shown as a 'none' string. Depending on how you've configured the data path, you might get lots of unnecessary 'none'results, which can make troubleshooting difficult or clutter the presentation of important automation results.

For example, artifact:*.cef.url might return 'url, None, None, None, None, None' for however many artifacts you have.

Select Drop None to clean this up.

It is usually advised to select Drop None (which is unchecked by default) for all format blocks unless you explicitly need none results for conditional processing.

Debugging

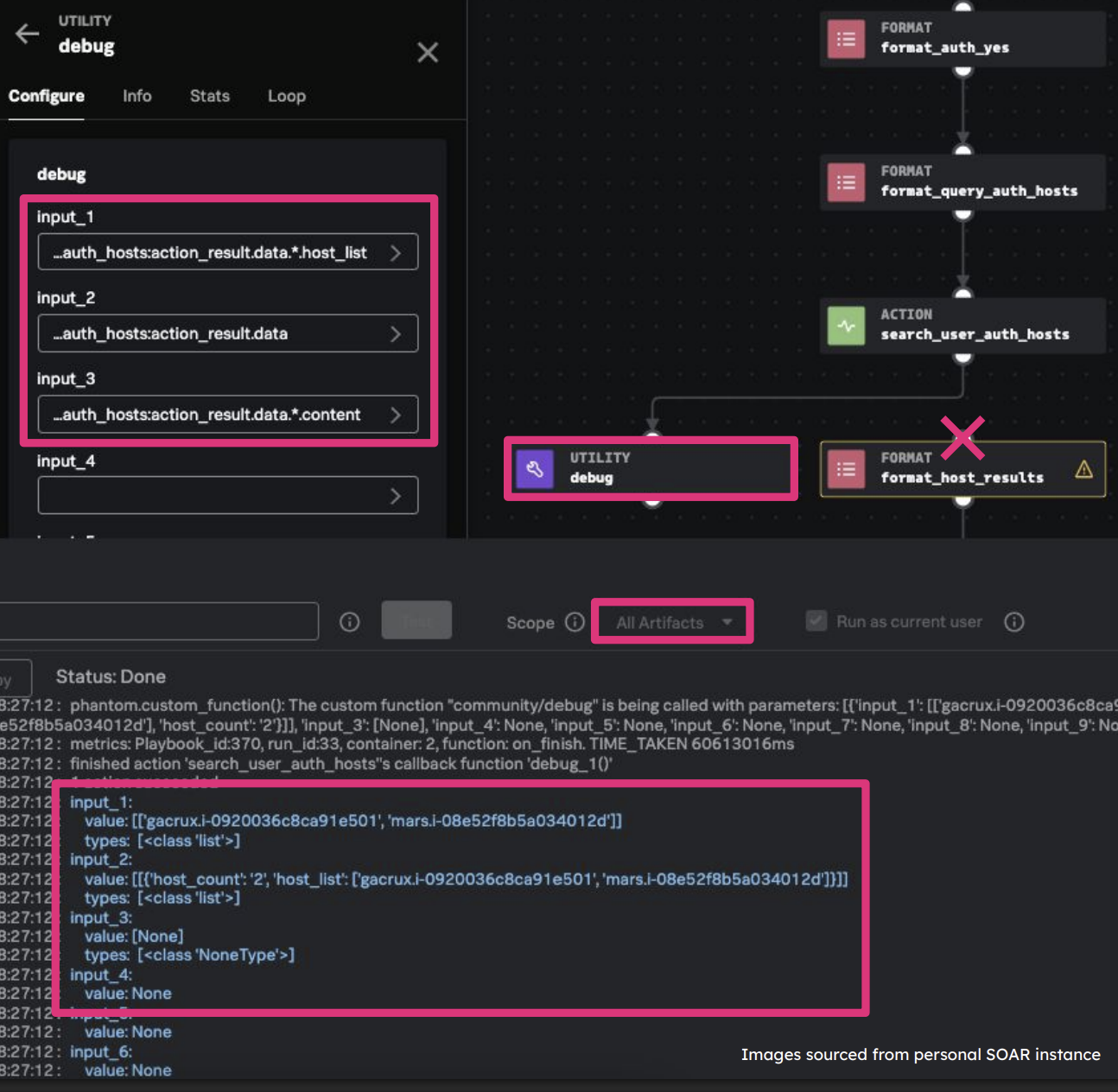

The utility block has a debug function to pass in up to 10 values. The Playbook Debugger window is used to monitor playbook execution and output as it runs. This is extremely useful when determining how to use the output of a previous block in the next step of the automation.

For example, you've just run an action block to perform a remote search of a Splunk platform instance through SPL and it has returned results, but you don't know how to reference these results to format and output them into the container notes. Selecting an input_x field within the debug block provides a preview of upstream fields; however, there will be many to choose from. Select up to 10 and run the playbook to monitor the output in order to determine the correct field to reference.

Some things to note when using this utility:

• Provide an artifact ID and always set the scope to All Artifacts
• Disconnect downstream blocks while debugging to prevent them running unnecessarily
• Use phantom.debug() in custom code blocks for even more control

For more information, see Debug playbooks in Splunk SOAR (On-Premises or Cloud).

Formatting arrays

The format block has built-in markdown for creating headings, tables, and more.

For more information, see Example of defining a template (On-Premises or Cloud).

SOAR notes also support markdown input, allowing for text formatting, notes, tables, and more. You can even insert images into your notes.

There is a tooltip in the playbook editor to help you with markdown, and more information is available in Create, sort, and filter notes in Splunk SOAR (On-Premises or Cloud). Use the note preview feature for real-time testing.

Joining branches

An absolute must-know is how SOAR handles the joining of two branches. When you use the JOIN SETTINGS option in the format block:

• By default, SOAR expects both branches to run and will wait indefinitely. To fix this, deselect required.
• You can also use a join to perform advanced formatting of your content. Configuring two inputs from different branches acts like an OR statement allowing for dynamic results. This prevents you from having to create a separate format block from each input. The playbook pulls in the one that is relevant.
